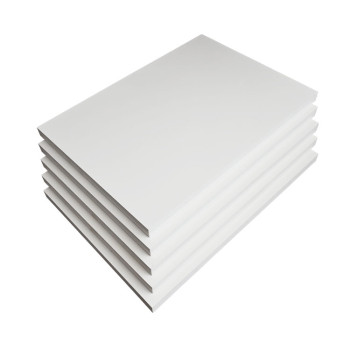

Plastic Building Templates PVC Concrete Formwork Panel For Buildings Bridge Box Culvert

group name: PVC Concrete Formwork

Min Order: 100 sheet

brand name: Boardway Plastic Sheet PVC Foam Board Manufacturer

Nearest port for product export: Guangzhou, Shenzhen, Shanghai, Ningbo

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow

update time: Thu, 21 Nov 2024 14:24:36 GMT

contact supplier

Paramtents

Material Polyvinyl chloride
Custom specifications Length, width, thickness, density
Processing services Cut to size, cnc engraving, bending
Supporting services Sourcing, construction technical guidance
Packing method PE bag, carton, pallet
Transportation mode FCL/LCL by sea, air, road and rail

Packging & Delivery

Min Order100 sheet

Briefing

BOARDWAY™ PVC concrete formwork represents a reusable, waterproof, impact-resistant and cost-effective building formwork.

Detailed

PVC Concrete Formwork

A PLASTIC FORMWORK WITH HIGHER DURABILITY AND COST-EFFICIENCY

PVC concrete formwork is an environmentally friendly, high-tech plastic composite material primarily composed of polyvinyl chloride (PVC) and specialized additives designed to meet specific performance requirements. It is manufactured using extrusion foaming technology.

With excellent water resistance, heat resistance, and dimensional stability, PVC formwork serves as a full replacement for wooden formwork, eliminating common issues found in wood. It is suitable for various construction applications, including parallel and vertical use in columns, beams, side walls, stairs, elevator shafts, high-rise buildings, bridges, viaducts, tunnels, and more.

As the reuse cycles of PVC formwork increase, the cost per use significantly decreases. Compared to traditional wood formwork, using PVC formwork can reduce overall project costs by 50% to 60%.

Product Details

Our high-quality PVC formwork features a smooth surface, enhanced toughness, and superior rigidity, making it resistant to deformation and cracking. This ensures that the concrete surface after pouring is flat and smooth, with no excess concrete leakage at the corners or formwork joints. This reduces the need for additional polishing and finishing work, ultimately saving on labor and materials.

PVC Concrete Formwork

Concrete Surface: Flat and Smooth

In addition to flat PVC formwork, we offer curved PVC formwork specifically designed for projects requiring curved concrete surfaces. With its flexibility and durability, our curved formwork enables smooth, precise curves in concrete structures. This formwork is ideal for creating architectural features, columns, bridges, tunnels, and any construction where a curved surface is essential, offering both versatility and efficiency for complex projects.

Curved Formwork For Bridge

The Use And Shipping Of Curved Formwork

Advantage

Waterproof -resists swelling, bending, or deforming when exposed to water

Anti-corrosion -acid-resistant and alkali-resistant, with no risk of corrosion

Weather resistance -suitable for use in cold, hot, and humid environments

Nail-holding strength -holds screws securely, preventing slippage

high impact resistant pvc concrete formwork

Good impact resistance -resists cracking even when dropped or impacted

Strong workability -easily sawed, drilled, nailed, and planed with conventional tools

Cost efficiency -can be reused up to 30 times, reducing project costs

Saves labor and time -can be reused up to 30 times, reducing project costs

Smooth concrete surface -requires no mold release agent and no plastering

Eco-friendly -our PVC formwork promotes environmental responsibility by reducing waste and minimizing carbon footprint

Comparison

pvc concrete formwork vs plywood formwork

PVC Formwork VS. Plywood

We conducted a practical comparison of plywood and PVC formwork on our construction site to assess performance under identical conditions.

The picture on the left shows both types of formwork in use within the same building section and area, providing a clear side-by-side evaluation.

Notably, each formwork type has been reused 6 times, allowing us to observe their durability, ease of handling, and quality of concrete finishes over multiple cycles. This comparison highlights the strengths and weaknesses of both materials in real-world conditions.

Formwork Performance	PVC Concrete Formwork	Plywood Formwork
Hardness	70 - 75 Shore D	Less than 30 Shore D
Flatness	Flat overall, slightly bent	The bending height is close to 2 cm
Surface	No damage on the surface, with small dent	The surface is damaged, especially near the edge
Corners	Intact and undamaged	The corners are cracked, not right angles
Expansive Deformation	No expansion	Expand and separated layer
Service life	Can continue to be used	Out of use

The concrete surface after demoulding from both formworks is shown below. The concrete cast using PVC formwork has a significantly better finish. The following images compare the appearance of the concrete surfaces: on the left, the concrete formed with PVC formwork, and on the right, the concrete formed with plywood formwork.

Concrete Appearance	PVC Concrete Formwork	Plywood Formwork
Concrete Color	The color of concrete can be uniform and beautiful without a mold release agent	A release agent must be used, otherwise the color of the concrete cannot be uniform
Wall	Overall clean and smooth	Rough with dirt and scratch, and uneven concrete
Ceiling	Tight joints, with only a little concrete overflow	There is excess concrete in the joints, need to be removed manually
Beam	Overall clean and smooth	Rough with dirt and scratch, and uneven concrete, especially at the junction
Pillar	Overall clean and smooth	The concrete at the junction is uneven, with concrete overflow or insufficient

Specification

Size

915x1830mm, 1220x2440mm, 1220x3000mm, size can be customized

Thickness

12mm, 15mm, 16mm, 18mm

Density

0.65, 0.7, 0.75, 0.8 g/cm3

Surface

Smooth

Customizable Options

Available upon request to accommodate specific project requirements

Technical Data Sheet

Testing sample: PVC concrete formwork, 18mm thick

Test Item	Method	Unit	Result
Density	ASTM D792	g/cm3	0.73
Hardness	ASTM D2240	Shore D	75
Water Absorption	ASTM D570	%	1.5
Flexural Strength	ASTM D790	MPa	26
Flexural Modulus	ASTM D790	MPa	1000
Tensile Strength at Yield	ASTM D638	MPa	30
Tensile Modulus	ASTM D638	MPa	1200
Elongation at Break	ASTM D638	%	15
Modulus of Elasticity	ASTM C1548-2	MPa	1600
Charpy Impact Resistance	ASTM D6110	KJ/m2	36

Construction Sites

Our PVC concrete formwork is versatile and suitable for a wide range of construction projects, providing optimal performance in various applications. Here are some key scenarios where our formwork excels:

Residential / Commercial Construction (aluminum support structure)

Residential / Commercial Construction (wood support structure)

Public Works (Community Centers)

Public Works Construction (High-speed Railway Station)

pvc formwork for railway station construction

Industrial Construction (Elevated Bridge)

Options For Customers

For Formwork Wholesalers

We offer PVC concrete formwork in a variety of grades and specifications. The size, thickness, and density can be fully customized to meet your specific requirements. We also accept mixed-specification shipments, providing you with flexibility and convenience in your orders.

For Builders

We can provide PVC formwork cut to your desired sizes, such as 300x2450mm, 400x1200mm, 250x1200mm, 300x600mm, and more, helping to reduce labor costs on-site. Additionally, if you need to purchase other construction accessories in China, such as structural parts, fasteners, or tools, we leverage our extensive network to assist with procurement and shipping.

For Developers and General Contractors

We offer comprehensive construction solutions tailored to your project needs. Based on your drawings, we can calculate the total amount of PVC concrete formwork required, providing you with an accurate material cost estimate and a comprehensive budget for optimal usage. If you are handling part or all of the concrete formwork for your project, Boardway's experienced construction team is available to visit your site and provide on-site technical guidance.
